• Air conditioning, front manual
• Coat hooks, driver and passenger side
• Comfort Convenience Package, Tilt-Wheel and cruise control
• Door locks, manual
• Door trim, with integral armrest, driver and passenger side map pockets
• Floor covering, rubberized vinyl full width floor covering (Upgradeable to (B30) Floor covering, color-keyed carpeting. - Not available with (AJ2) Seats, driver and passenger side, rear.)
• LS decor
• Mirror, inside rearview, prismatic
• Power outlets, auxiliary, dual, covered, 12-volt
• Seats, front, Vinyl, 60/40 split-bench, integral outboard head restraints and dual cupholders (Upgradeable to (92D) Medium Pewter LS Cloth trim)
• Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock (Upgradeable to (US8) Sound System, ETR AM/FM stereo with CD player, MP3.)
• Steering wheel, 4-spoke, deluxe
• Theft-deterrent system, PASSLock
• Visors, padded, Cloth, includes vanity mirror, passenger-side
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active
• Windows, manual, driver and front passenger

• Alternator, 100 amps
• Battery, heavy-duty, 690 cold-cranking amps, includes rundown protection
• Brakes, 4-wheel antilock, front disc/rear drum
• Four wheel drive
• Front underbody shield (4WD Models only)
• Fuel tank 19.6 gallons (74.19 Liters) approximate
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 8 cargo tie-downs on Regular and Extended cab, tailgate, locking, 2-position
• Steering, power, rack-and-pinion
• Suspension Package, Standard
• Suspension, front, torsion bar (Standard on 4WD Models only)
• Suspension, rear, semi-floating axle with 2-stage multi-leaf springs
• Tire, spare, compact, located at rear underbody of vehicle (Not available with (Z71) Suspension Package, off road or (ZQ8) Suspension Package, sport.)
• Tires, P235/75R15, all-season, blackwall (4WD models with (Z85) Suspension Package, Standard only.)
• Transfer case, electronic shift, Insta-Trac, includes dash-mounted controls, 4 x 4 models only
• Wheels, 4 - 15" x 6" (38.1 cm x 15.2 cm) steel

• Air bags, frontal, driver and right front passenger, includes passenger sensing system (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime running lamps, includes automatic exterior lamp control
• LATCH system (Lower Anchors and Top tethers for Children), for child safety seats
• Safety belts, 3-point, outboard, driver and front passenger, adjustable (center front position lap belt with bench seat only)

ENGINE, 3.5L DOHC, 5-CYLINDER, MFI

• (220 HP [164.1 kW] @ 5600 rpm
• 225 lb.-ft. [303.7 N-m] @ 2800 rpm)

• Cruise Control
• Adjustable Steering Wheel
• Variable Speed Intermittent Wipers
• Power Outlet

• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 690
• Maximum Alternator Capacity (amps): 100
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2753
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 2169
• Curb Weight - Rear (lbs): 1512
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 285
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2755
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: - TBD -
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2753
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11 x 1.1
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 1.8
• Tires
• Front Tire Order Code: QFL
• Rear Tire Order Code: QFL
• Spare Tire Order Code: ZAA
• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 1763
• Rear Tire Capacity (lbs): 1763
• Spare Tire Capacity (lbs): 1763
• Wheels
• Front Wheel Size (in): 15 x 6
• Rear Wheel Size (in): 15 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.3
• Steering Ratio (:1), At Lock: 3.2
• Turning Diameter - Curb to Curb (ft): 44.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 68.6
• Height, Overall (in): 67.6
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 125.6
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 29.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): -TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44.0
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.6
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Second Head Room (in): 37.9
• Second Leg Room (in): 23.1
• Second Shoulder Room (in): 57.2
• Second Hip Room (in): 57.6
• Summary

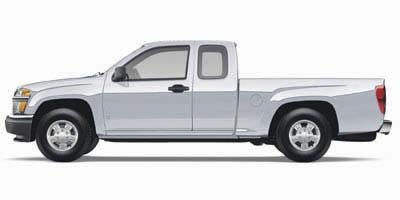

• Vehicle Name: Chevrolet Colorado
• Body Style: Extended Cab
• Body Code: E63
