2006 Ford F-150
1
/
1
2006 Ford F-150 4WD SuperCab Styleside 6-1/2 Ft Box XL
In-stock
- Internet Price Call For Price
Visit our Store
- Davis Ford, Inc.
-
2111 N Main
Canton, IL 61520
- Sales: 309-435-4041
- Service: 309-435-4042
- Parts: 309-435-4039
Vehicle Information
VIN:
1FTPX14576NA06671
Stock #:
8630A
Model Code:
X14
-
Body Style Extended Cab Pickup -
Exterior Color Red
-
Mileage 135,514
-
City/Highway 14/18 MPG -
Engine 5.4L V8 24V MPFI SOHC -
Transmission 4-Speed A/T -
Fuel Type Gas
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- 4WD/AWD
All Features
- Argent front bumper w/black lower valance & fascia
- Argent rear step bumper
- Black "bar style" grille insert
- Black door & tailgate handles
- Black grille surround
- Cargo lamp integrated
- Fixed rear window w/solar tint glass
- Interval wipers
- Manual paddle-type side mirrors
- Tailgate, removable w/key lock & lift assist
- 2nd row grab handles
- AM/FM stereo w/clock
- Black urethane steering wheel
- Black vinyl floor covering
- Display center-inc: warning messages & text functions
- Dome lamp & front dual map lights
- Driver & passenger side A-pillar grab handles
- Front pwr point
- Glove box
- Manual air conditioning
- Matching 60/40 flip-up rear split bench seat
- Rear pwr point
- SecuriLock anti-theft ignition (PATS)
- Sunvisors-inc: driver-side strap, passenger mirror
- Tilt steering column
- Vinyl 40/20/40 split bench front seat
- (2) front tow hooks
- 130-amp alternator
- 17" grey styled steel wheels
- 2-ton jack
- 27 gallon fuel tank
- 4-wheel drive
- 58-amp/hr maintenance-free battery
- 6.5' pickup box w/(4) tie-down hooks
- 6950# GVWR, 1600# maximum payload
- Front stabilizer bar
- Full-size spare tire w/lock & underframe winch-type carrier
- Independent coil-over-shock double wishbone front suspension
- Mechanical shift-on-the-fly (MSOF) transfer case
- P235/75R17 all-terrain BSW tires
- Pwr front/rear anti-lock disc brakes (ABS)
- Pwr rack & pinion steering
- Solid rear axle w/leaf spring rear suspension
- 3-point safety belts at all rear seat positions
- Auto lock safety belt feature for child seats
- Center front 2-point safety belt
- Dual note horn
- Dual stage driver & front passenger airbags
- Pwr front/rear anti-lock disc brakes (ABS)
- Seat Belt Minder system
- Seat integrated outside front lap & shoulder safety belts-inc: height adjusters, pretensioners, energy management retractors
- Adjustable Steering Wheel
- Power Outlet
- EPA Fuel Economy Est - City (MPG): 14
- EPA Fuel Economy Est - Hwy (MPG): 18
- Cold Cranking Amps @ 0° F (Primary): 540
- Maximum Alternator Capacity (amps): 110
- Maximum Alternator Watts: 1650
- Total Cooling System Capacity (qts): 20.7
- Total Cooling System Capacity (qts): 21.0
- Total Cooling System Capacity (qts): 19.7
- Gross Axle Wt Rating - Front (lbs): 3600
- Gross Axle Wt Rating - Rear (lbs): 3800
- Curb Weight - Front (lbs): 3174
- Curb Weight - Front (lbs): 3113
- Curb Weight - Rear (lbs): 2226
- Curb Weight - Rear (lbs): 2184
- Gross Vehicle Weight Rating Cap (lbs): 6950
- Gross Combined Wt Rating (lbs): 14000
- Gross Combined Wt Rating (lbs): 15000
- Gross Combined Wt Rating (lbs): 11700
- Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs): 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 8300
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 830
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 620
- Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8300
- Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9300
- Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6200
- Fifth Wheel Hitch - Max Tongue Wt. (lbs): 830
- Fifth Wheel Hitch - Max Tongue Wt. (lbs): 930
- Fifth Wheel Hitch - Max Tongue Wt. (lbs): 620
- Suspension Type - Front: Coil Spring
- Suspension Type - Rear: Leaf Spring
- Spring Capacity - Front (lbs): 3150
- Spring Capacity - Rear (lbs): 3850
- Axle Type - Front: Double Wishbone
- Axle Type - Rear: Semi-Floating
- Axle Capacity - Front (lbs): 4400
- Axle Capacity - Rear (lbs): 4200
- Axle Capacity - Rear (lbs): 5300
- Axle Capacity - Rear (lbs): 3800
- Axle Ratio (:1) - Front: 3.55
- Axle Ratio (:1) - Rear: 3.55
- Shock Absorber Diameter - Front (mm): 36
- Shock Absorber Diameter - Rear (mm): 32
- Stabilizer Bar Diameter - Front (in): 1.34
- Brake Type: Power
- Brake ABS System: 4-wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 13.0 x 0.55
- Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.47
- Front Tire Order Code: T7B
- Rear Tire Order Code: T7B
- Spare Tire Order Code: T7B
- Front Tire Size: P235/75R17
- Rear Tire Size: P235/75R17
- Spare Tire Size: P235/75R17
- Front Tire Capacity (lbs): 2004
- Rear Tire Capacity (lbs): 2004
- Spare Tire Capacity (lbs): 2004
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Revolutions/Mile @ 45 mph - Spare: - TBD -
- Front Wheel Size (in): 17 x 7.5
- Rear Wheel Size (in): 17 x 7.5
- Spare Wheel Size (in): 17 x 7.5
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material: Steel
- Steering Type: Pwr Rack & Pinion
- Steering Ratio (:1), On Center: 17.2
- Turning Diameter - Curb to Curb (ft): 46.4
- Turning Diameter - Wall to Wall (ft): - TBD -
- Frame Type: Ladder
- Fuel Tank Capacity, Approx (gal): 27
- Fuel Tank Location: Midship
- Wheelbase (in): 144.5
- Length, Overall w/o rear bumper (in): 229.8
- Width, Max w/o mirrors (in): 78.9
- Height, Overall (in): 75.6
- Overhang, Front (in): 36.9
- Overhang, Rear w/o bumper (in): 48.4
- Front Bumper to Back of Cab (in): - TBD -
- Cab to Axle (in): - TBD -
- Cab to End of Frame (in): - TBD -
- Ground to Top of Load Floor (in): 34.9
- Ground to Top of Frame (in): - TBD -
- Frame Width, Rear (in): - TBD -
- Ground Clearance, Front (in): - TBD -
- Ground Clearance, Rear (in): - TBD -
- Cargo Box Length @ Floor (in): 78.8
- Cargo Box Width @ Top, Rear (in): 62.4
- Cargo Box Width @ Floor (in): 60.3
- Cargo Box Width @ Wheelhousings (in): 50.0
- Cargo Box (Area) Height (in): 22.3
- Tailgate Width (in): 65.2
- Cargo Volume (ft³): 65.5
- Passenger Capacity: 6
- Front Head Room (in): 40.9
- Front Leg Room (in): 41.3
- Front Shoulder Room (in): 66.5
- Front Hip Room (in): 65.8
- Second Head Room (in): 39.6
- Second Leg Room (in): 32.7
- Second Shoulder Room (in): 66.7
- Second Hip Room (in): 66.5
- Vehicle Name: Ford F-150
- Body Style: Supercab 6.5' Styleside
- Body Code: 145" WB

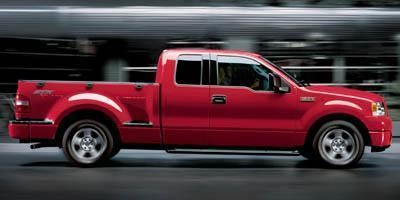

May not represent actual vehicle. (Options, colors, trim and body style may vary)
