• Bumper, rear, delete
• Bumpers, front, Black
• Door handles, Black grained
• Dual Rear Wheels
• Glass, solar absorbing, tinted
• Grille (Front grille bar with "CHEVROLET" molded in Black, includes Black mesh inserts with small Gold bowtie emblem.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Lamps, Smoked Amber roof marker, (LED)
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp with switch in bank on left side of steering wheel
• Mirror caps, Black
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm]) (Standard on Regular Cab models. Included and only available with (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package.)
• Moldings, beltline, Black
• Spare tire delete Deletes the spare tire and wheel.
• Tires, LT235/80R17E all-terrain, blackwall
• Wheel trim, painted center caps
• Wheels, 17" (43.2 cm) painted steel

• Air conditioning, single-zone
• Assist handles front A-pillar mounted for driver and passenger
• Back-up alarm calibration. This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting (Not available with (8S3) Back-up alarm.)
• Brake lining wear indicator
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
• Compass, located in instrument cluster
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Floor covering, rubberized-vinyl
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Remote Keyless Entry, with 2 transmitters
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, urethane
• USB Ports, 2, Charge/Data ports located on instrument panel
• Universal Vehicle Module Includes module, customer interface harness and instructions. Provides vehicle data over an open CAN network (J1939). 10 switchable inputs/outputs and Custom Configuration Tool to integrate upfit equipment controls. Software features that support Auto Vehicle Start, Shutdown Inhibit, Fast Idle and Snow Plow.
• Vinyl seat trim
• Window, power front, drivers express up/down
• Window, power front, passenger express down

• Air filter, heavy-duty
• Air filtration monitoring
• Auto-locking rear differential
• Body, Chassis Cab
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capped Fuel Fill
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and an open "C" rear section
• Fuel tank, front and rear, 63.5 gallon
• GVWR, 14,000 lbs. (6350 kg)
• Recovery hooks, front, frame-mounted, Black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package
• Trailer brake controller, integrated
• Transfer case, two-speed, electronic shift with push button controls (Requires 4WD models.)

• Airbags Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Emergency Braking
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use
• Daytime Running Lamps with automatic exterior lamp control
• Following Distance Indicator
• Forward Collision Alert
• Front Pedestrian Braking
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. For MY25 vehicles, OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)
• OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• (470 hp [350.5 kW] @ 2800 rpm
• 975 lb-ft of torque [1322 Nm] @ 1600 rpm)

• Bluetooth® Connection
• Navigation System
• WiFi Hotspot
• Smart Device Integration
• Stability Control
• MP3 Player
• Auxiliary Audio Input
• Cruise Control
• Adjustable Steering Wheel
• Keyless Entry
• Power Outlet

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 7250
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 11300
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 26000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 22040
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5510
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4675
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Independent
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF6
• Rear Tire Order Code: QF6
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/70R18
• Rear Tire Size: LT275/70R18
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 141.55
• Length, Overall (in): 235.59
• Width, Max w/o mirrors (in): 81.75
• Height, Overall (in): 80.94
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 11.22
• Ground Clearance, Rear (in): 11.22
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary

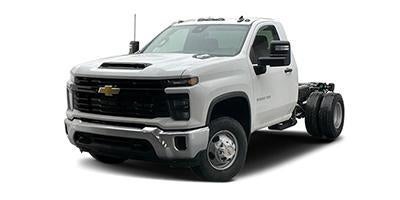

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Regular Cab Pickup
• Body Code: E63
